STRAIGHT SIDED CRANKLESS

new

The SEW-SCL Series Presses are dedicated for requirement of higher stroke length for various operations presses and
ensure product quality equivalent to conventional presses.
As SEW’s consistent efforts to develop progressive technology and aim for value added features ensuring higher productivity then
conventional press operations i.e. blanking, bending and shallow drawing for precision stamping for very precise and costly parts.
Frame structure is robust and symmetrical in both the directions to improve dynamic accuracy and to withstand the progressive
stamping of thick sheet metal.
Amply dimensioned balancers reduce vibration and enable stable high-speed production.
Wider range of press capacities from 315 tonne to 800 tonne to suit every progressive forming components. Customised presses
with higher pressure capacities can also be offered.

SPECIFICATIONS

MODEL	Unit	SCL-1-320A	SCL-1-320B	SCL-1-400A	SCL-1-400B	SCL-1-500A	SCL-1-500B	SCL-1-630A	SCL-1-630B
CAPACITY	Tonne	320	320	400	400	500	500	630	630
	kN	3200	3200	4000	4000	5000	5000	6300	6300
FIX STROKE LENGTH	mm	300/350	400/450	300/350	400/450	300/350	400/450	300/350	400/450
SPEED (FIXED)	SPM	25	18	18	18	18	18	12	12
SPEED RANGE (VARIABLE)	SPM	20-30	15-22	15-25	12-20	15-22	14-20	10-15	10-15
RATED DISTANCE	mm	9	13	9	13	9	13	11	13
DIE HEIGHT SDAU	mm	600	600	600	600	700	700	700	700
SLIDE ADJUSTMENT (MOTORISED)	mm	200	200	200	200	250	250	250	250
SLIDE AREA (LR X FB)	mm	1300x1000	1300x1000	1400x1000	1400x1100	1500x1150	1500x1150	1600x1150	1600x1150
BOLSTER AREA (LR X FB)	mm	1300x1100	1300x1100	1400x1200	1400x1200	1500x1250	1500x1250	1600x1250	1600x1250
BOLSTER THICKNESS	mm	190	190	200	200	220	220	250	250
FLOOR TO TOP OF BOLSTER	mm	900	900	900	900	900	900	900	900
MOTOR POWER (FIX SPEED)	HP	30	30	40	40	50	50	60	60
MOTOR POWER (VARIABLE SPEED)	HP	40	40	50	50	60	60	75	75
SLIDE ADJ MOTOR POWER	HP	3	3	3	3	3	3	5	5
DIE CUSION FORCE	Ton	30	30	30	30	40	40	50	50
DIE CUSION ATROKE	mm	140	140	140	140	150	150	200	200
DIE CUSION AREA	mm	800x500	800x500	800x500	800x500	900x600	900x600	910x80	910x80

MODEL	Unit	SCL-2-315-M	SCL-2-315-H	SCL-2-400-M	SCL-2-400-H	SCK-2-500-M	SCL-2-500-H	SCK-2-630-H	SCL-2-800-H
CAPACITY	Tonne	315	315	400	400	500	500	630	800
RATED DISTANCE	mm	13	13	13	13	13	13	13	13
SPEED (CONTINUOUS)	SPM	12-25	10-20	12-25	10-20	12-25	10-20	10-20	10-20
STROKE LENGTH (FIXED)	mm	400	600	400	600	400	600	600	600
SHUT HEIGHT (SDAU)	mm	850	850	850	850	850	850	1100	1100
SLIDE ADJUSTMENT (MOTORISED)	mm	200	300	200	300	200	300	400	400
SLIDE FACE LR X FB (ALT-1)	mm	2200X1300	2500X1600	2200X1300	2500X1600	2200X1300	2500X1600	2500X1600	2800X1600
SLIDE FACE LR X FB (ALT-2)	mm	2500X1300	2800X1600	2500X1300	2800X1600	2500X1300	2800X1600	2800X1600	3100X1600
SLIDE FACE LR X FB (ALT-3)	mm	2800X1300	3100X1600	2800X1300	3100X1600	2800X1300	3100X1600	3100X1600	3400X1600
BOLSTER SIZE FACE LR X FB (ALT-1)	mm	2200X1300	2500X1600	2200X1300	2500X1600	2200X1300	2500X1600	2500X1600	2800X1600
BOLSTER SIZE FACE LR X FB (ALT-2)	mm	2500X1300	2800X1600	2500X1300	2800X1600	2500X1300	2800X1600	2800X1600	3100X1600
BOLSTER SIZE FACE LR X FB (ALT-3)	mm	2800X1300	3100X1600	2800X1300	3100X1600	2800X1300	3100X1600	3100X1600	3400X1600
MAIN MOTOR POWER	HP	50	50	60	60	75	75	100	120
DIE CUSHION	Tonne	50	50	60	60	80	80	100	120
STROKE LENGTH (FIXED)	mm	120	120	160	160	160	160	220	220
PAD AREA (LR X FB) ALT-1	mm	1750x850	2050x850	1750x1150	2050x1150	1750x1150	2050x1150	2050x1150	2350x1150
PAD AREA (LR X FB) ALT-2	mm	2050x850	2350x850	2050x1150	2350x1150	2050x1150	2350x1150	2350x1150	2650x1150
PAD AREA (LR X FB) ALT-3	mm	2350x850	2650x850	2350x150	2650x1150	2350x1150	2650x1150	2650x1150	2950x1150

Please Note: The manufacturer reserve rights to modify design, specifications, mechanism, etc. to improve the performance of this machine without notice.

REQUEST OFFER

Lathe Machines

ALL GEARED LATHE MACHINES

Belt Driven Lathe Machines ( Cone Pulley Lathes )

Hydraulic Press Brakes & Shearing Machines

Hydraulic Shearing ( Variable Rake Angle ) Machines

Hydraulic Press Brake

Tapping Machines

Radial Drilling Machines

Milling Machines

Surface Grinders

Milling Cum Drilling Machines

Mechnical Shearing Machines ( Guillotine Shears )

Mechanical Shearing Machine

Power Press

Pneumatic Clutch Power Press

Rolling Key Clutch Power Press

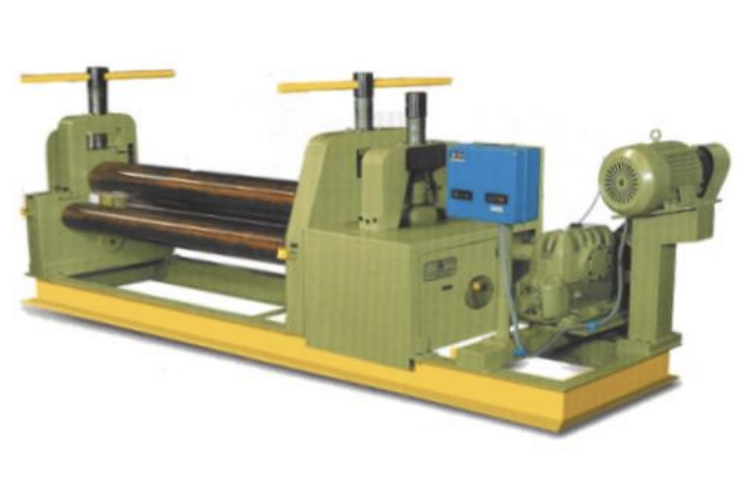

Plate Bending Machines
